Drawing a box with a cylinder hole can seem complicated, but using the right strategy and perspective rules, you can master this form in a clear and structured way. This tutorial breaks down the process into simple steps, guiding you from 2D layout to a 3D perspective sketch, perfect for product design or industrial sketching.
Step 1: Start with the Top View (2D)
Begin by drawing a square for the top surface of your box. Draw the diagonals to find the center. Next, within the square, draw a smaller square which will represent where the hole will be. Inside that smaller square, place a circle centered, representing the hole’s opening.
Step 2: Translate to 3D with 2-Point Perspective

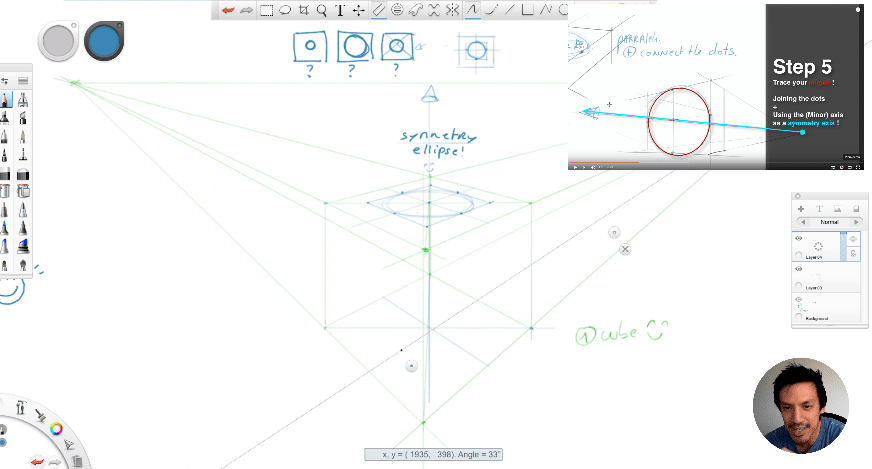

Set up your 2-point perspective by placing two vanishing points on the horizon line. Draw your box by connecting the edges to the vanishing points, forming a three-dimensional cube. Use the diagonals and center points from Step 1 to project the hole onto the 3D box.
Step 3: Draw the Hole as a Cylinder Inside the Box
Project the circle from the top surface down into the box by creating ellipses on the front and back faces. Connect these ellipses to form a cylinder, representing the hole passing through your box.
Step 4: Add Contour Lines for Depth and Volume
Use contour lines around the edges of the hole to indicate material thickness and volume. Add hatching inside the hole to create contrast and show the depth visually.
Step 5: Practice with Different Angles
Try drawing the box with the hole from various perspectives, including tilted angles, by adjusting your horizon line accordingly. The key is to always align your verticals perpendicular to the horizon and adjust the box edges to your vanishing points.
With practice, drawing complex shapes like a box with an internal hole becomes a simple game of following geometry rules and perspective principles. Remember, sketching fast and freehand is part of the creative process — perfection comes with repetition!
